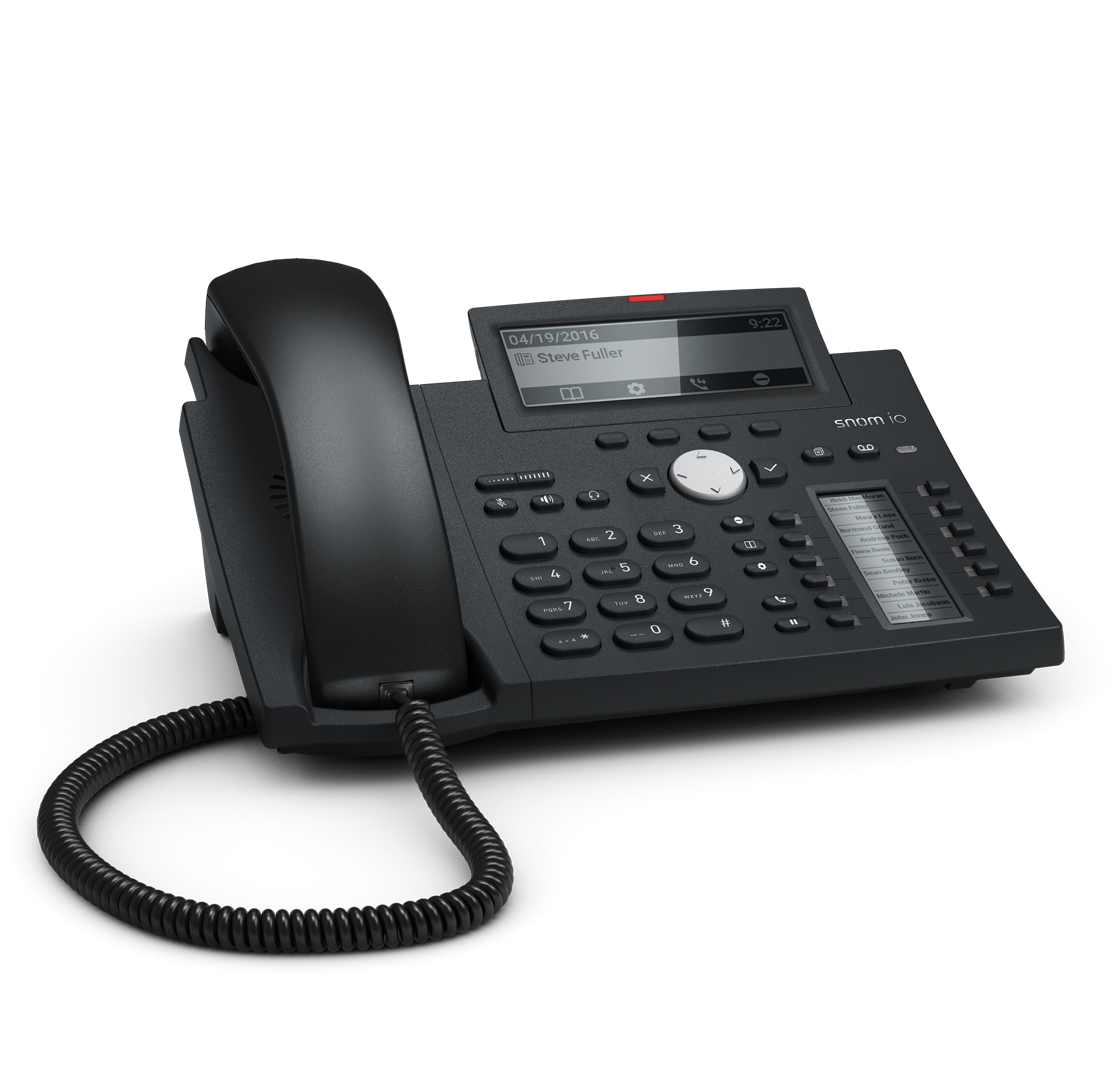

Snom IP Phone D345 (SNM_D345)

The D345 is a high quality office phone supporting 12 identities in an elegant, traditional style that has been designed with the requirements of the IT service provider in mind. Call and feature management, editable call lists, and an address book are provided by the high resolution grap hical display. The new Snom sensor hook switch has been designed for durability and reduced wear and helps to ensure a long product life even when the phone is used extensively.

· High resolution graphical display

· Second display for self-labeling LED keys

· Wall mountable

· Sensor hook switch

· Digital signal processor (DSP) enhanced audio quality

· 2-port Gigabit Ethernet switch (RJ45)

· Power over Ethernet IEEE 802.3af, Class 3

· USB headset-ready

· D3 Expansion module-ready

· USB WiFi stick support (RT2070/RT3070 chipsets)

· Electronic Hook Switch (EHS) support for wireless headsets

· 12 SIP identities / accounts

· XML browser

· Call lists for dialed, received, missed calls

· Local directory with 1000 entries

· Multiple language support

· DTMF in-band / out-of-band / SIP-INFO

· Interoperable with all major IP-PBX platforms

· Speed dialing

· URL dialing

· Local dial plan

· Automatic redial on busy

· Call completion (busy/unreachable)

· Caller identification

· Call waiting

· Call blocking (deny list)

· Auto answer

· Hold

· Music on hold

· Handling of up to 12 simultaneous calls

· Blind and attended transfer

· Call forwarding

· 3-way conferencing on the phone

· Extension monitoring, call pickup

· Call park, call unpark

· Multicast paging

· DND mode (do not disturb)

· Keyboard lock

· Client matter code (CMC)

· Unified Communications ready

· Codecs:

· G.711 A-law, μ-law

· G.722 (wideband)

· G.726, G.729AB, GSM 6.10 (FR)

· Built-in assignable ringtones

· Comfort noise generator (CNG)

· Voice activity detection (VAD)

· Configurable through web interface

· Provisioning:

· Automatic loading of settings via HTTP/HTTPS/TFTP

· DHCP Options 66/67

· Snom Redirection Service

· Remote management via TR-069 / TR-111

· SIP (RFC3261)

· DHCP, NTP

· HTTP / HTTPS / TFTP

· LDAP (Directory)

· Dual Stack IPv4 / IPv6

· Localization (language, time, dial tone)

· Red LED for call indication / message waiting

· 4 context-sensitive keys

· 12 (48) configurable self-labeling LED keys

· Dedicated message key

· Audio keys: Mute, speakerphone, headset, volume

· 4-way navigation key, OK and cancel keys

· Menu-driven user interface
