Condition : NEW
Vendor Part Number : SNM_D717_BL
Description : Desk VoIP phone D717 Telephone Black
Dimensions :
| Weight |
1.5 (KG) |
| Height |
11.0 (CM) |
| Length |
27.0 (CM) |
| Width |
22.0 (CM) |
- Colour: Black
- High-resolution TFT colour display
- 3 freely programmable function keys (BLF)
- Ambient Sensor
- USB port
- Headset connectable

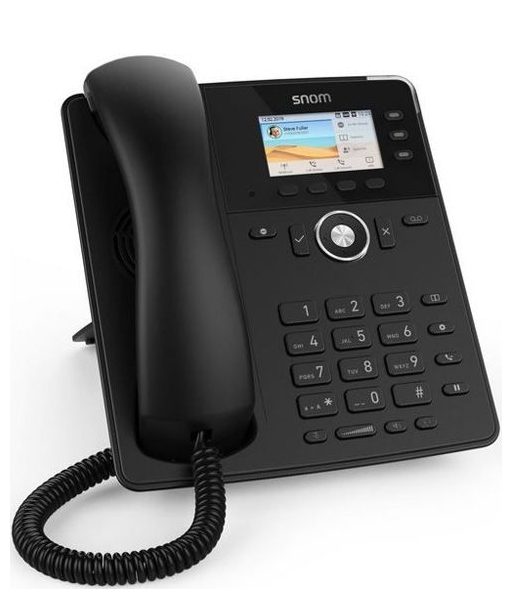

The Snom D717 convinces with a high-resolution colour display and the freely configurable Snom SmartLabel. A built-in ambient sensor ensures that the brightness of the phone display is always adjusted to the current lighting conditions in the room. This is both energy-saving and convenient. The telephone has 3 multi-coloured, self-labelling LED function keys, an integrated gigabit switch. Furthermore, a variety of accessories can be connected via the USB port.
The Snom D717 is available in black and white. Thus, the phone fits perfectly into any working environment, whether office or reception area.
The Snom D717 combines the latest technology, best voice quality and clear design in one device - with this, the Snom D717 promises the entry into the world of professional VoIP telephony.
Benefits
· Integrated ambient light sensor
· Automatic backlight dimming
· Wide screen graphical TFT display
· 3 self-labeling function keys
· Wideband hands-free talking (speakerphone)
· Digital Signal Processor (DSP) enhanced audio quality
· 2-port Gigabit Ethernet switch (RJ45)
· Power over Ethernet IEEE 802.3af, Class 2
· USB headset ready
· D7 Expansion Module ready
· Support for USB WLAN stick
· Electronic Hook Switch (EHS) support for wireless headsets
· Dual-angle footstand: 46° and 28°
![]()
Technical Specifications![]()
Features
· 6 SIP identities / accounts
· XML browser
· Call lists for dialed, received, and missed calls
· Local directory with 1000 entries
· Multiple language support
· DTMF in-band / out-of-band / SIP-INFO
· Interoperable with all major IP PBX platforms
Call Features
· Speed dialing
· URL dialing
· Local dial plan
· Automatic redial on busy
· Call completion (busy/unreachable)
· Caller identification
· Call waiting
· Call blocking (deny list)
· Auto answer
· Hold
· Music on hold
· Blind and attended transfer
· Call forwarding
· 3-way conferencing on the phone
· Extension monitoring, call pickup
· Call park, call unpark
· Multicast paging
· DND mode (do not disturb)
· Keyboard lock
· Client matter code (CMC)
· Unified Communications ready
Audio
· Codecs:
· G.711 A-law, μ-law
· G.722 (wideband)
· G.726, G.729AB, GSM 6.10 (FR)
· Built-in assignable ringtones
· Comfort Noise Generator (CNG)
· Voice Activity Detection (VAD)
Setup
· Configurable through web interface
· Provisioning:
· Automatic loading of settings via HTTP/HTTPS/TFTP
· DHCP Options 66/67
· Snom Redirection Service
· Remote management via TR-069 / TR-111
Protocols
· SIP (RFC3261)
· DHCP, NTP
· HTTP / HTTPS / TFTP
· LDAP (Directory)
· Dual Stack IPv4 / IPv6
User Interface
· Localization (language, time, dial tone)
· Red LED for call indication / message waiting
· 4 context-sensitive keys
· 3 programmable line / function keys with multicolour LEDs
· Dedicated keys for: Message, DND, Directory, Menu, Transfer, Hold, Page
· Audio keys with LED indication: Mute, Speakerphone, Headset
· Volume key
· 5-way navigation key
· OK and Cancel keys
· Automatic backlight enabled
Security
· 802.1X authentication and EAPOL
· Transport layer security (TLS)
· SRTP (RFC3711), SIPS, RTCP
· HTTPS server/client
· password-protected web interface
· VPN-support
· VLAN (IEEE 802.1Q)
· LLDP-MED, RTCP-XR
Phone Features
· Dimensions (approx.):
· 205 x 185 x 40 mm (LxWxD) w/o foot stand
· 205 x 185 x 200/220 mm (LxWxD) with foot stand
· Weight (approx.): device 710g, footstand 120g
· Input voltage: 5Vdc (SELV)
· Power supply: PoE or 5Vdc power adapter
, 10 Watts
· Handset: 4P4C
· Headset: 4P4C; Support for Snom EHS Advanced
· Hearing-aid compatible (HAC) handset
· 1 x USB 2.0 host port, Type A
· Environmental conditions:
· Ambient temperature: 0°C to 35°C (32°F to 95°F)
· Storage temperature: -10°C to 45°C (14°F to 113°F)
· Humidity: 5% to 95% (non-condensing)
· Included in delivery:
· Phone unit
· Footstand
· Handset with cord
