Condition : NEW
Vendor Part Number : SNM_D345
Dimensions :
Weight |
1.2 (KG) |
Height |
27.0 (CM) |
Length |
22.0 (CM) |
Width |
11.0 (CM) |
Key Features
- 12 (48) configurable self-labeling multicolor LED keys
- High resolution display
- Gigabit switch | USB port
- Second screen
- 12 SIP identities

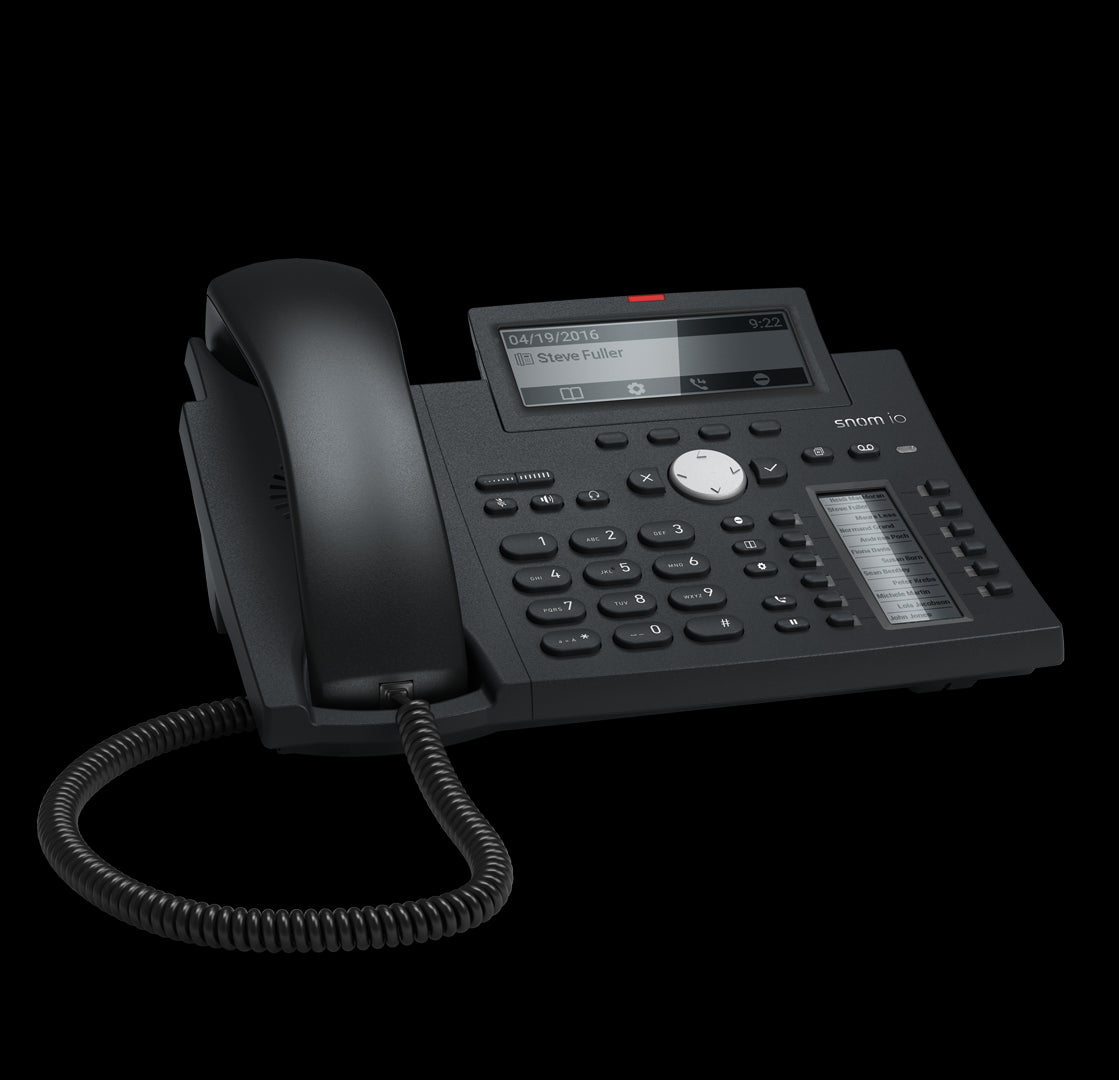

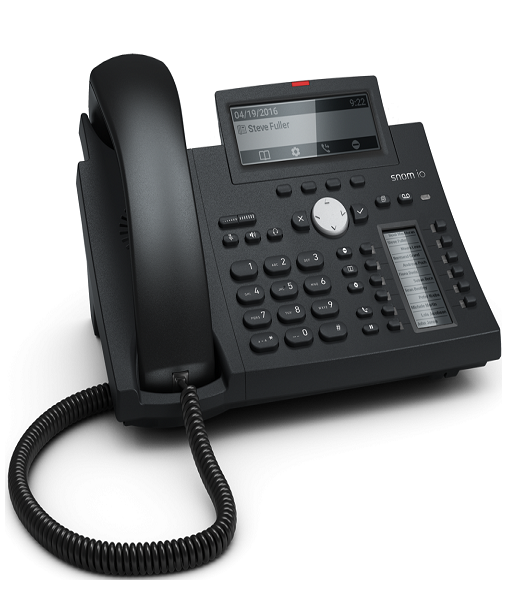

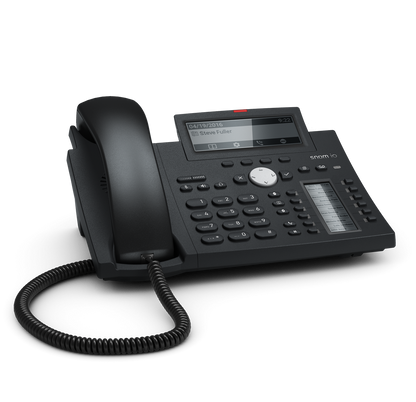

The D345 is a high quality office phone supporting 12 identities in an elegant, traditional style that has been designed with the requirements of the IT service provider in mind. Call and feature management, editable call lists, and an address book are provided by the high resolution grap hical display. The new Snom sensor hook switch has been designed for durability and reduced wear and helps to ensure a long product life even when the phone is used extensively.
- Flexible Placement
- Function Key Display
- Extensive Connectivity
Technical Specifications
Benefits
· High resolution graphical display
· Second display for self-labeling LED keys
· Wall mountable
· Sensor hook switch
· Digital signal processor (DSP) enhanced audio quality
· 2-port Gigabit Ethernet switch (RJ45)
· Power over Ethernet IEEE 802.3af, Class 3
· USB headset-ready
· D3 Expansion module-ready
· USB WiFi stick support (RT2070/RT3070 chipsets)
· Electronic Hook Switch (EHS) support for wireless headsets
Firmware
Features
· 12 SIP identities / accounts
· XML browser
· Call lists for dialed, received, missed calls
· Local directory with 1000 entries
· Multiple language support
· DTMF in-band / out-of-band / SIP-INFO
· Interoperable with all major IP-PBX platforms
Call Features
· Speed dialing
· URL dialing
· Local dial plan
· Automatic redial on busy
· Call completion (busy/unreachable)
· Caller identification
· Call waiting
· Call blocking (deny list)
· Auto answer
· Hold
· Music on hold
· Handling of up to 12 simultaneous calls
· Blind and attended transfer
· Call forwarding
· 3-way conferencing on the phone
· Extension monitoring, call pickup
· Call park, call unpark
· Multicast paging
· DND mode (do not disturb)
· Keyboard lock
· Client matter code (CMC)
· Unified Communications ready
Audio
· Codecs:
· G.711 A-law, μ-law
· G.722 (wideband)
· G.726, G.729AB, GSM 6.10 (FR)
· Built-in assignable ringtones
· Comfort noise generator (CNG)
· Voice activity detection (VAD)
Set-up
· Configurable through web interface
· Provisioning:
· Automatic loading of settings via HTTP/HTTPS/TFTP
· DHCP Options 66/67
· Snom Redirection Service
· Remote management via TR-069 / TR-111
Specification
Protocols
· SIP (RFC3261)
· DHCP, NTP
· HTTP / HTTPS / TFTP
· LDAP (Directory)
· Dual Stack IPv4 / IPv6
User Interface
· Localization (language, time, dial tone)
· Red LED for call indication / message waiting
· 4 context-sensitive keys
· 12 (48) configurable self-labeling LED keys
· Dedicated message key
· Audio keys: Mute, speakerphone, headset, volume
· 4-way navigation key, OK and cancel keys
· Menu-driven user interface
Security
· 802.1X authentication and EAPOL
· Transport layer security (TLS)
· SRTP (RFC3711), SIPS, RTCP
· HTTPS server/client
· Password-protected web interface
· VPN-support
· VLAN (IEEE 802.1Q)
· LLDP-MED, RTCP-XR
Phone Features
· Dimensions (approx.): 250x185x120 mm (LxWxH)
· Weight (approx.): 880g
· Input voltage: 5V DC (SELV)
· Power supply: PoE or 5V DC power adapter
· Handset: 4P4C connector
· Headset: 4P4C connector
· Hearing aid compatible (HAC) handset
· 1 x USB 2.0 host port, type A, Hi/Full/Low-Speed
· Environmental conditions:
· Ambient temperature: 0°C to 35°C (32°F to 95°F)
· Storage temperatur: -10°C to 45°C (14°F to 113°F)
· Humidity: 5% to 95% (non-condensing)
· Included in delivery:
· Base phone unit
· Foot stand
· Handset with cord
· Ethernet cable
· Quick Start Guide
· Color: Black-blue
· Warranty: 2 years
· Part Number: 00004260
